Leontief (Perfect Complements)
\[U(x, y) = \min(ax, by)\]
Goods are consumed in fixed proportions. Indifference curves are L-shaped with a kink along the expansion path \(y = \tfrac{a}{b}\,x\).
Parameters
| Parameter | Type | Default | Description |
|---|---|---|---|
a |
float | 1.0 | Coefficient on good \(x\) |
b |
float | 1.0 | Coefficient on good \(y\) |
Optimisation
The consumer solves
\[\max_{x,\,y}\; \min(ax, by) \quad \text{subject to}\quad p_x x + p_y y = I\]
The \(\mathrm{MRS}\) is undefined at the kink, so the standard tangency condition never holds in the interior. The optimum always lies at the kink vertex where \(ax = by\). Substituting \(y = \tfrac{a}{b}\,x\) into the budget constraint:
\[\begin{aligned}
p_x x + p_y \cdot \frac{a}{b}\,x &= I \\[6pt]
x\!\left(p_x + \frac{a\,p_y}{b}\right) &= I
\end{aligned}\]
The Marshallian demands are therefore
\[x^* = \frac{I}{p_x + \dfrac{a}{b}\,p_y}, \qquad y^* = \frac{a}{b}\,x^*\]

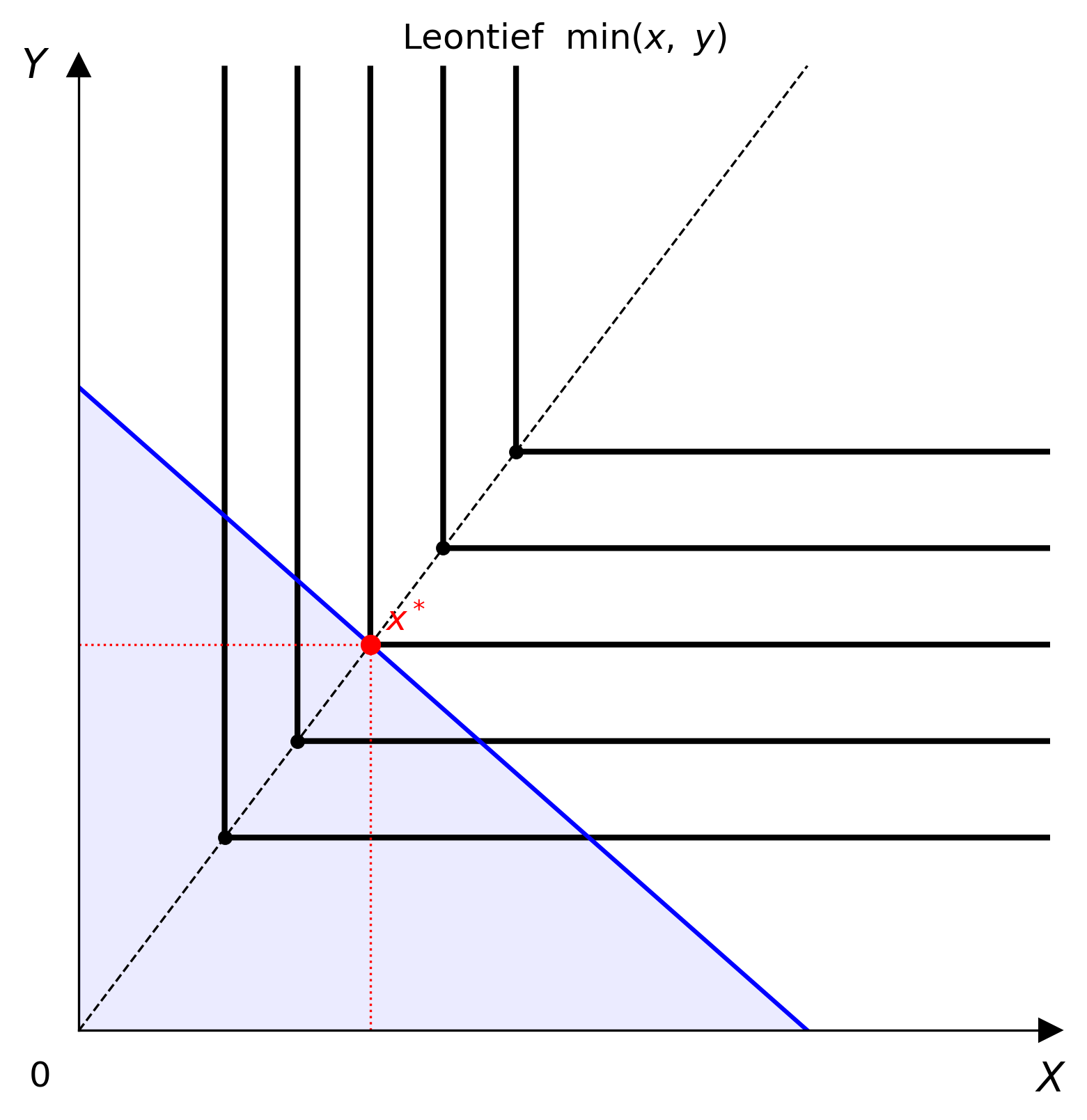

Usage
from econ_viz import Canvas, levels, solve
from econ_viz.models import Leontief
model = Leontief(a=1.0, b=1.0)
eq = solve(model, px=2.0, py=3.0, income=30.0)
lvls = levels.around(eq.utility, n=5)
Canvas(x_max=20, y_max=15, title=r"Leontief $\min(x, y)$") \
.add_utility(model, levels=lvls, show_rays=True, show_kinks=True) \
.add_budget(2.0, 3.0, 30.0) \
.add_equilibrium(eq) \
.save("leontief.png")
