CES (Constant Elasticity of Substitution)
\[U(x, y) = \left(\alpha x^\rho + \beta y^\rho\right)^{1/\rho}\]
The elasticity of substitution is \(\sigma = 1/(1-\rho)\). CES nests several special cases:
| \(\rho\) | Limit | Equivalent to |
|---|---|---|
| \(\rho \to 0\) | \(x^\alpha y^\beta\) | Cobb-Douglas |
| \(\rho \to -\infty\) | \(\min(\alpha x, \beta y)\) | Leontief |
| \(\rho = 1\) | \(\alpha x + \beta y\) | Perfect Substitutes |
Parameters
| Parameter | Type | Default | Description |
|---|---|---|---|
alpha |
float | 0.5 | Share parameter for good \(x\) |
beta |
float | 0.5 | Share parameter for good \(y\) |
rho |
float | 0.5 | Substitution parameter (\(\rho \ne 1\)) |
Optimisation
The consumer solves
\[\max_{x,\,y}\; \left(\alpha x^\rho + \beta y^\rho\right)^{1/\rho} \quad \text{subject to}\quad p_x x + p_y y = I\]
The Lagrangian is
\[\mathcal{L}(x, y, \lambda) = \left(\alpha x^\rho + \beta y^\rho\right)^{1/\rho} - \lambda\,(p_x x + p_y y - I)\]
First-order conditions:
\[\begin{aligned}
\frac{\partial \mathcal{L}}{\partial x} &= \alpha x^{\rho-1}\left(\alpha x^\rho + \beta y^\rho\right)^{1/\rho - 1} - \lambda p_x = 0 \\[6pt]
\frac{\partial \mathcal{L}}{\partial y} &= \beta y^{\rho-1}\left(\alpha x^\rho + \beta y^\rho\right)^{1/\rho - 1} - \lambda p_y = 0 \\[6pt]
\frac{\partial \mathcal{L}}{\partial \lambda} &= p_x x + p_y y - I = 0
\end{aligned}\]
Dividing the first two conditions cancels the common factor and gives the tangency condition:
\[\frac{\alpha}{\beta}\left(\frac{y}{x}\right)^{1-\rho} = \frac{p_x}{p_y}\]
Solving for the optimal ratio and using \(\sigma = 1/(1-\rho)\):
\[\frac{y^*}{x^*} = \left(\frac{\alpha\,p_y}{\beta\,p_x}\right)^{\!\sigma}\]

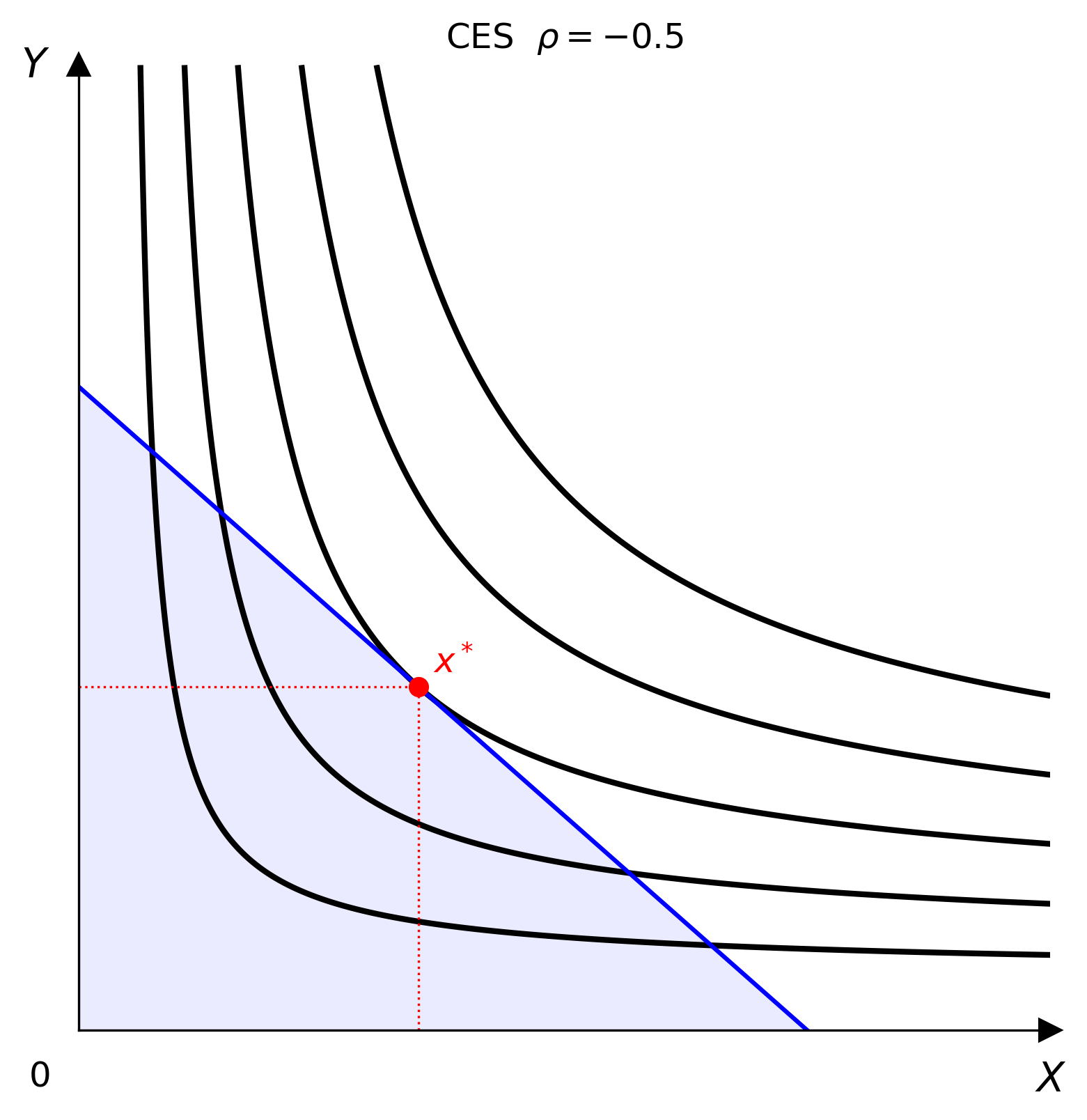

Usage
from econ_viz import Canvas, levels, solve
from econ_viz.models import CES
model = CES(rho=-0.5, alpha=0.5, beta=0.5) # σ = 1/(1+0.5) ≈ 0.667
eq = solve(model, px=2.0, py=3.0, income=30.0)
lvls = levels.around(eq.utility, n=5)
Canvas(x_max=20, y_max=15, title=r"CES $\rho = -0.5$") \
.add_utility(model, levels=lvls) \
.add_budget(2.0, 3.0, 30.0) \
.add_equilibrium(eq) \
.save("ces.png")
